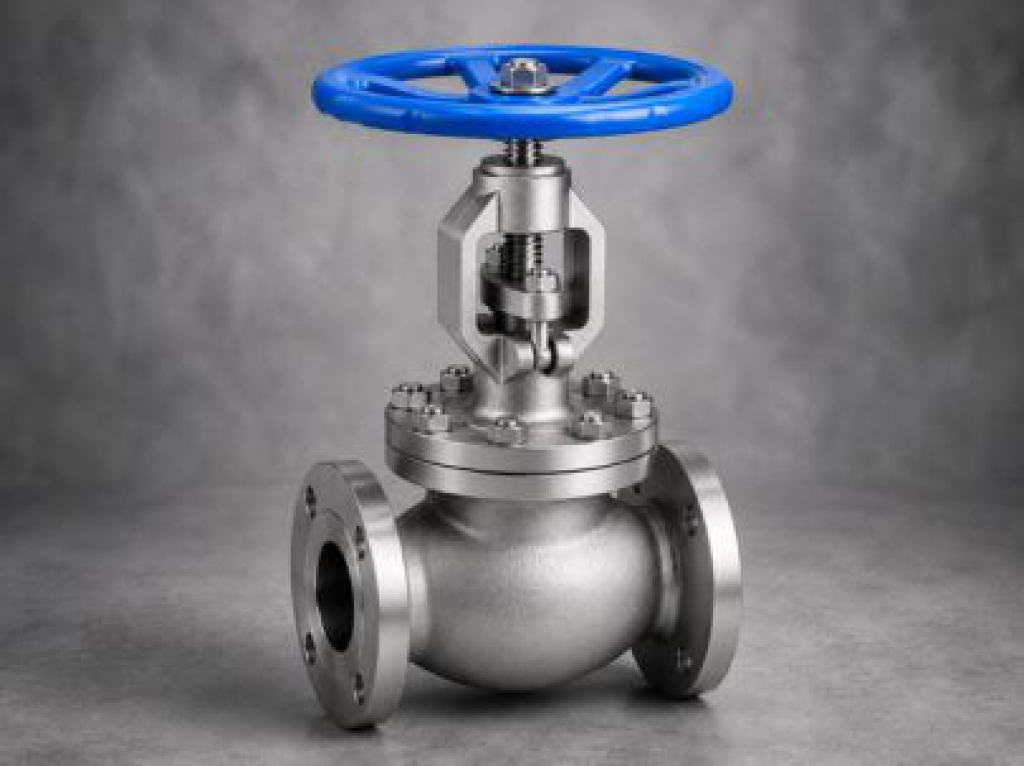

Globe Valve Globe Valves
Globe Valve is a highly efficient flow control valve designed to regulate, start, or stop the flow of liquids, gases, and steam. It is widely used in industrial pipelines where precise throttling and flow control are required. The valve offers excellent sealing performance, durability, and reliable operation under varying pressure and temperature conditions.
DESIGN DETAILS
| DESCRIPTION | VALUE |
|---|---|
| DESIGN & MFG. CODE | BS 1873 |
| INSPECTION & TESTING | API 598 / BS 6755 PART 1 |
| FACE TO FACE | ASME B 16.10 |
| END CONNECTION | ASME B 16.5 R/F CONC. SERRATED |
MATERIALS TABLE
| NO. | PARTS NAME | MATERIALS |
|---|---|---|
| 1 | HANDWHEEL | SG IRON |
| 2 | YOKE SLEEVE | SG IRON |
| 3 | GLAND FLANGE | CARBON STEEL |
| 3A | STUD/NUT | ASTM 193 B7 / 194 2H |
| 4 | GLAND PACKING | GRAPHITED ASBESTOS |
| 5 | GASKET | CAF / SPIRAL WOUND SS304/316 + CAF |
| 6 | GLAND BUSH | AISI 410 |
| 7 | BACKSEAT BUSH | AISI 410 |
| 8 | STEM | AISI 410 |
| 9 | SEATRING | AISI 410 / CS + 13% Cr. FACING |
| 10 | DISC NUT | AISI 410 |
| 11 | DISC | Ca15 / WCB + 13% Cr. FACING |
| 12 | BONNET | ASTM A 216 Gr. WCB |
| 13 | BODY | ASTM A 216 Gr. WCB |
SIZE TABLE (150#)
| SIZE | ØNB | ØF | FT | ØRf | Rft | Od | N | N:PCD. | A |
|---|---|---|---|---|---|---|---|---|---|
| 25MM | 25 | 110 | 9.6 | 50.8 | 2.0 | 15.9 | 4 | 79.4 | 127 |
| 40MM | 38 | 125 | 12.7 | 73.0 | 2.0 | 15.9 | 4 | 98.4 | 165 |
| 50MM | 51 | 150 | 14.3 | 92.1 | 2.0 | 19.05 | 4 | 120.7 | 203 |
| 65MM | 64 | 180 | 15.9 | 104.8 | 2.0 | 19.05 | 4 | 139.7 | 216 |
| 80MM | 76 | 190 | 17.5 | 127.0 | 2.0 | 19.05 | 4 | 152.4 | 241 |
| 100MM | 102 | 230 | 22.3 | 157.2 | 2.0 | 19.05 | 8 | 190.5 | 292 |
| 150MM | 152 | 280 | 23.9 | 215.9 | 2.0 | 22.2 | 8 | 241.3 | 406 |
| 200MM | 203 | 345 | 27.0 | 269.9 | 2.0 | 22.2 | 8 | 298.5 | 495 |
| 250MM | 254 | 405 | 28.6 | 323.8 | 2.0 | 25.4 | 12 | 362.0 | 622 |
| 300MM | 305 | 485 | 30.2 | 381.0 | 2.0 | 25.4 | 12 | 431.8 | 698 |
SIZE TABLE (300#)
| SIZE | ØNB | ØF | FT | ØRf | Rft | Od | N | N:PCD. | A |
|---|---|---|---|---|---|---|---|---|---|
| 25MM | 25 | 125 | 15.9 | 50.8 | 2.0 | 19.05 | 4 | 88.9 | 203 |
| 40MM | 38 | 155 | 19.1 | 73.0 | 2.0 | 22.2 | 4 | 114.3 | 229 |
| 50MM | 51 | 165 | 20.7 | 92.1 | 2.0 | 19.05 | 8 | 127.0 | 267 |
| 65MM | 64 | 190 | 23.9 | 104.8 | 2.0 | 22.2 | 8 | 149.2 | 292 |
| 80MM | 76 | 210 | 27.0 | 127.0 | 2.0 | 22.2 | 8 | 168.3 | 318 |
| 100MM | 102 | 255 | 30.2 | 157.2 | 2.0 | 22.2 | 8 | 200.0 | 356 |
| 150MM | 152 | 320 | 35.0 | 215.9 | 2.0 | 22.2 | 12 | 269.9 | 444 |
| 200MM | 203 | 380 | 39.7 | 269.9 | 2.0 | 25.4 | 12 | 330.2 | 559 |
| 250MM | 254 | 445 | 46.1 | 323.8 | 2.0 | 28.6 | 16 | 387.4 | 622 |
| 300MM | 305 | 520 | 49.3 | 381.0 | 2.0 | 31.8 | 16 | 450.8 | 711 |
HYDRO TEST PRESSURE
| SHELL | SEAT & BACKSEAT |
|---|---|
| 35 Kg/cm² | 22 Kg/cm² |
| AIR SEAT | 7 Kg/cm² |
| 78 Kg/cm² | 58 Kg/cm² |
.
