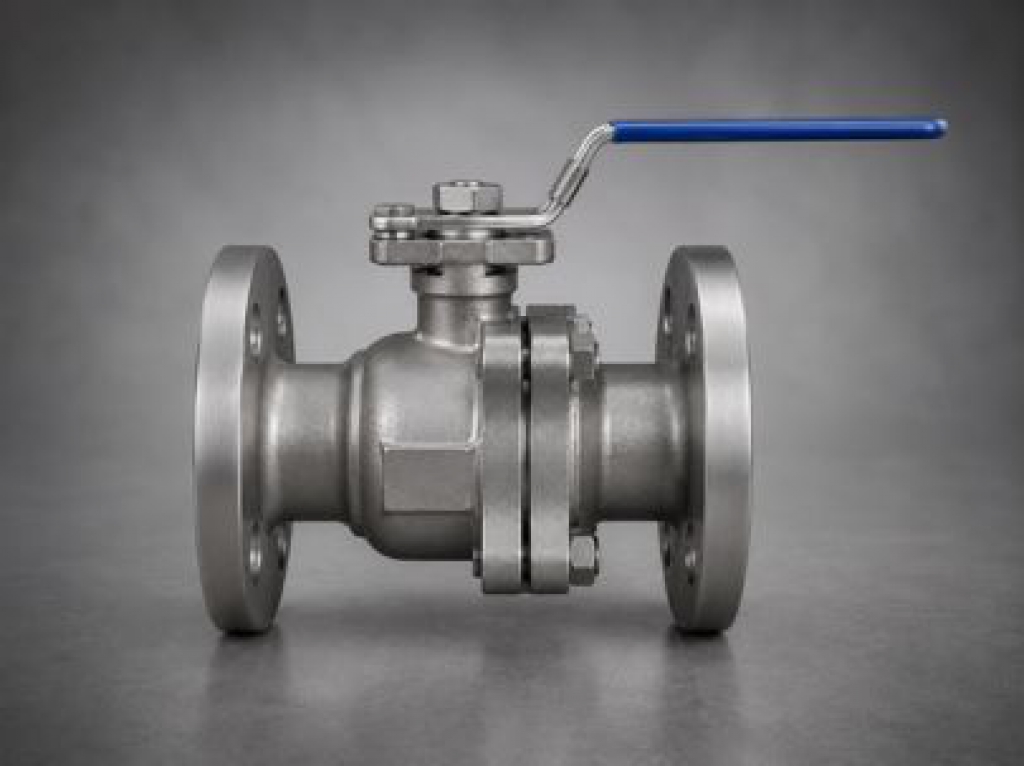

Ball Valve Two Pieces Ball Valve Two Pieces
Two Piece Ball Valve is a high-performance quarter-turn valve designed for efficient flow control and shut-off applications. Its two-piece body construction provides easy maintenance, excellent sealing performance, and long service life. These valves are widely used in water treatment plants, chemical industries, oil & gas sectors, pharmaceuticals, and industrial process systems.
MATERIALS TABLE
| NO. | PARTS NAME | WCB | CF8 | CF8M |
|---|---|---|---|---|
| 1 | BODY | WCB | CF8 | WCB |
| 2 | SIDE PIECE | WCB | CF8 | WCB |
| 3 | BALL | SS304/Cr | SS316/Cr | SS304/Cr |
| 4 | GLAND | AISI 304 | AISI 304 | AISI 316 |
| 5 | STEM | AISI 304 | AISI 304 | AISI 316 |
| 6 | BODY SEAT | PTFE | PTFE | PTFE |
| 7 | STEM SEAL | PTFE | PTFE | PTFE |
| 8 | GLAND PACKING | PTFE | PTFE | PTFE |
| 9 | BODY SEAL | PTFE | PTFE | PTFE |
| 10 | STOPPER PLATE | CS | SS | SS |
| 11 | GLAND NUT | AISI 304 | AISI 304 | AISI 316 |
| 12 | STUD & NUT | CS | SS 304 | SS 316 |
| 13 | LEVER | CS | CS | CS |
| 14 | SLEEVE | PVC | PVC | PVC |
SIZE TABLE
| SIZE MM | ØNB | ØF | FT | ØRf | Rft | Ød | N | N:PCD. | A |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 12 | 90 | 8.9 | 34.9 | 2.0 | 15.9 | 4 | 60.3 | 108 |
| 20 | 17 | 100 | 8.9 | 42.9 | 2.0 | 15.9 | 4 | 69.9 | 118 |
| 25 | 24 | 110 | 9.6 | 50.8 | 2.0 | 15.9 | 4 | 79.4 | 127 |
| 32 | 32 | 115 | 11.2 | 63.5 | 2.0 | 15.9 | 4 | 88.9 | 140 |
| 40 | 37 | 125 | 12.7 | 73.0 | 2.0 | 15.9 | 4 | 98.4 | 165 |
| 50 | 48 | 150 | 14.3 | 92.1 | 2.0 | 19.05 | 4 | 120.7 | 178 |
| 65 | 62 | 180 | 15.9 | 104.8 | 2.0 | 19.05 | 4 | 139.7 | 190 |
| 80 | 75 | 190 | 17.5 | 127.0 | 2.0 | 19.05 | 4 | 152.4 | 203 |
| 100 | 98 | 230 | 22.3 | 157.2 | 2.0 | 19.05 | 8 | 190.5 | 229 |
| 125 | 125 | 255 | 22.3 | 185.7 | 2.0 | 22.2 | 8 | 215.9 | 254 |
| 150 | 148 | 280 | 23.9 | 215.9 | 2.0 | 22.2 | 8 | 241.3 | 267 |
| 200 | 198 | 345 | 27.0 | 269.9 | 2.0 | 22.2 | 12 | 298.5 | 292 |
| 250 | 248 | 405 | 28.6 | 323.8 | 2.0 | 25.4 | 12 | 362.0 | 533 |
| 300 | 298 | 485 | 30.2 | 381.0 | 2.0 | 25.4 | 12 | 431.8 | 610 |
HYD. TEST PRESSURE
| TEST | PRESSURE |
|---|---|
| SHELL | 32 Kg/cm² |
| SEAT | 22 Kg/cm² |
| AIR TEST | 07 Kg/cm² |
