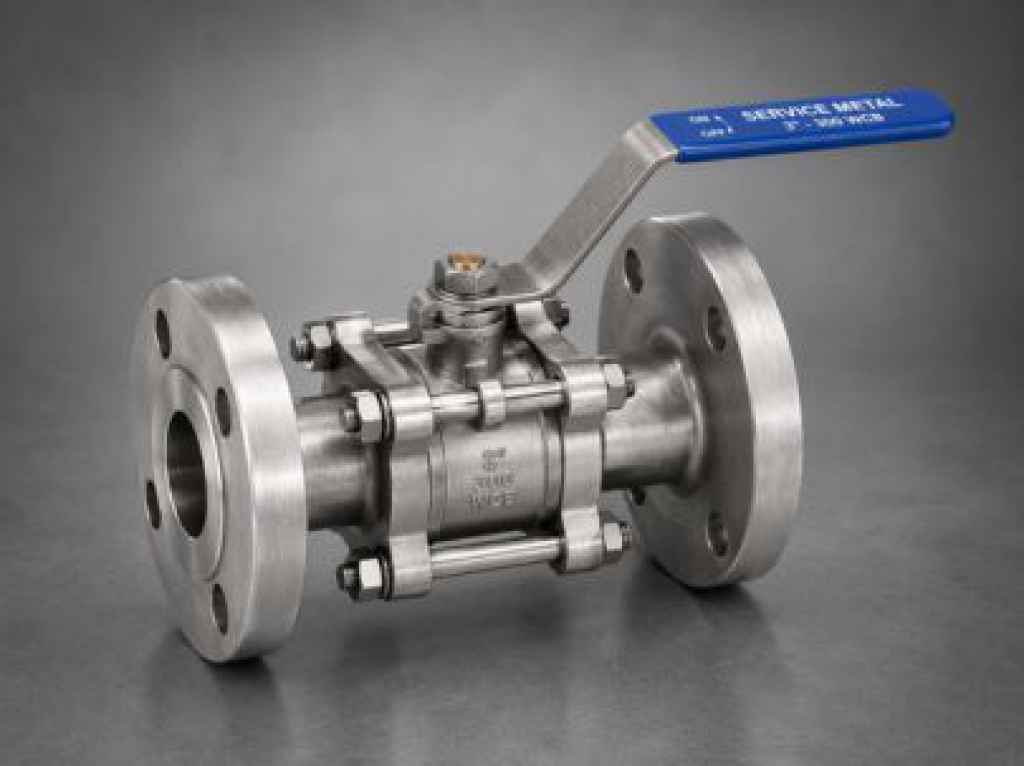

Ball Valve Three Pieces Ball Valve Three Pieces
Three Piece Ball Valve is a premium-grade quarter-turn valve designed for superior flow control and easy maintenance. Its three-piece body construction allows quick disassembly for cleaning, repair, and inspection without removing the valve from the pipeline. These valves are widely used in chemical processing, pharmaceuticals, food industries, water treatment plants, and industrial fluid handling systems.
MATERIALS TABLE
| NO. | PARTS NAME | WCB | CFB | WCB |
|---|---|---|---|---|
| 1 | BODY | WCB | CFB | WCB |
| 2 | SIDE PIECE | WCB | CFB | WCB |
| 3 | BALL | SS304/CF8 | SS304/CF8 | SS304/CF8M |
| 4 | GLAND | AISI 304 | AISI 304 | AISI 316 |
| 5 | STEM | AISI 304 | AISI 304 | AISI 316 |
| 6 | BODY SEAT | PTFE | PTFE | PTFE |
| 7 | STEM SEAL | PTFE | PTFE | PTFE |
| 8 | GLAND PACKING | PTFE | PTFE | PTFE |
| 9 | BODY SEAL | PTFE | PTFE | PTFE |
| 10 | STOPPER PLATE | CS | SS | SS |
| 11 | GLAND NUT | AISI 304 | AISI 304 | AISI 316 |
| 12 | STUD & NUT | CS | SS 304 | SS 316 |
| 13 | LEVER | CS | CS | CS |
| 14 | SLEEVE | PVC | PVC | PVC |
SIZE TABLE
| SIZE MM | ØNB | ØF | FT | ØRF | Rft | Ød | N | P.C.D. | A |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 12 | 90 | 8.0 | 34.9 | 2.0 | 15.9 | 4 | 60.3 | 108 |
| 20 | 17 | 100 | 8.9 | 42.9 | 2.0 | 15.9 | 4 | 69.9 | 118 |
| 25 | 24 | 110 | 9.6 | 50.8 | 2.0 | 15.9 | 4 | 79.4 | 127 |
| 32 | 32 | 115 | 11.2 | 63.5 | 2.0 | 15.9 | 4 | 88.9 | 140 |
| 40 | 37 | 125 | 12.7 | 73.0 | 2.0 | 15.9 | 4 | 98.4 | 165 |
| 50 | 48 | 150 | 14.3 | 92.1 | 2.0 | 19.05 | 4 | 120.7 | 178 |
| 65 | 62 | 180 | 15.9 | 104.8 | 2.0 | 19.05 | 4 | 139.7 | 190 |
| 80 | 75 | 190 | 17.5 | 127.0 | 2.0 | 19.05 | 4 | 152.4 | 203 |
| 100 | 98 | 230 | 22.3 | 157.2 | 2.0 | 19.05 | 8 | 190.5 | 229 |
| 125 | 125 | 255 | 22.3 | 185.7 | 2.0 | 22.2 | 8 | 215.9 | 254 |
| 150 | 148 | 280 | 23.9 | 215.9 | 2.0 | 22.2 | 8 | 241.3 | 267 |
| 200 | 198 | 345 | 27.0 | 269.9 | 2.0 | 22.2 | 8 | 298.5 | 292 |
HYD. TEST PRESSURE
| TEST | PRESSURE |
|---|---|
| SHELL | 32 Kg/cm² |
| SEAT | 22 Kg/cm² |
| AIR TEST | 07 Kg/cm² |
DESIGN DETAILS
| DESCRIPTION | VALUE |
|---|---|
| DESIGN & MFG. CODE | API 602 |
| INSPECTION & TESTING | API 598 / BS 5146 |
| FACE TO FACE | AS PER ANSI B 16.10 |
| END CONNECTION | ANSI B 16.5 |
| DRILLING | TABLE D,E,F, ASA 150#, ASA 300# |
