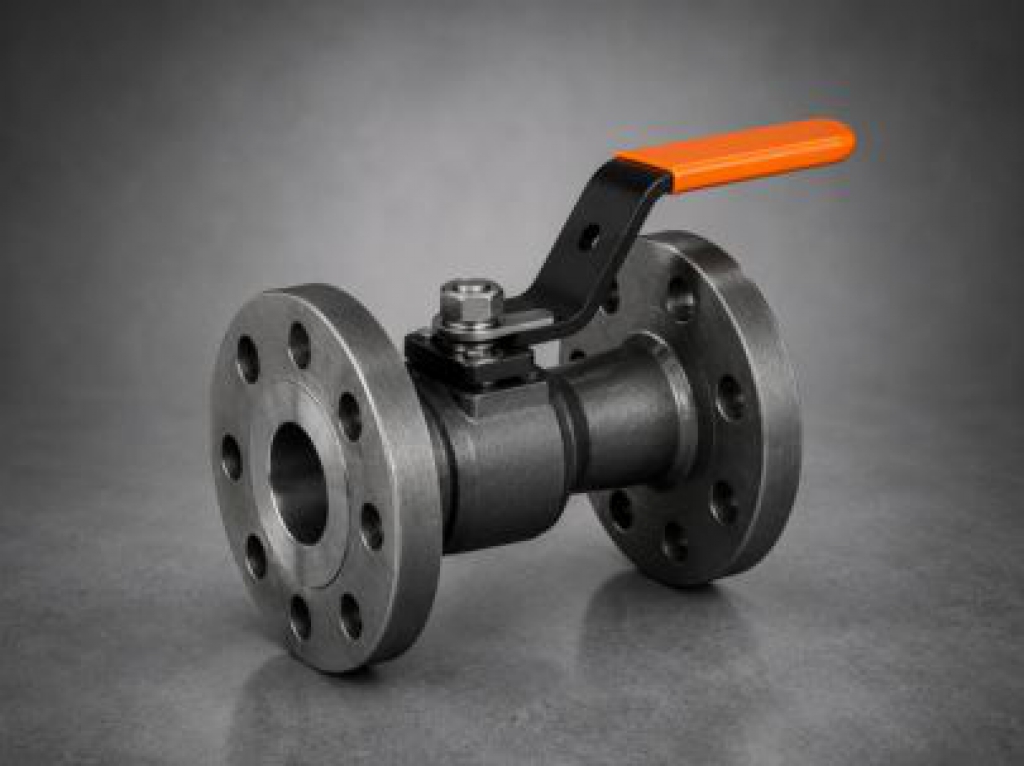

Ball Valve Single Pieces Ball Valve Single Piece
Single Piece Ball Valve is a compact and durable quarter-turn valve designed for reliable flow control and shut-off applications. Its one-piece body construction minimizes leakage points, enhances strength, and ensures long-lasting performance. These valves are widely used in water treatment systems, chemical processing plants, oil & gas industries, and industrial fluid handling applications.
MATERIALS TABLE
| NO. | PARTS NAME | MATERIALS | QTY. |
|---|---|---|---|
| 1 | BODY | WCB / CF8 / CF8M | 1 |
| 2 | INSERT | WCB / CF8 / CF8M | 1 |
| 3 | BALL | AISI 304 / 316 | 1 |
| 4 | GLAND | AISI 304 / 316 | 1 |
| 5 | STEM | AISI 304 / 316 | 1 |
| 6 | BODY SEAT | PTFE | 1 |
| 7 | STEM SEAL | PTFE | 1 |
| 8 | GLAND PACKING | PTFE | 2 |
| 9 | BODY SEAL | PTFE | 2 |
| 10 | STOPPER PLATE | SS 304 / SS 316 | 1 |
| 11 | LEVER | SS 304 / SS 316 | 1 |
SIZE TABLE
| SIZE MM | ØNB | ØF | FT | ØRf | Rft | Ød | N | N:PCD. | A | QTY. |
|---|---|---|---|---|---|---|---|---|---|---|
| 15x20 | 12 | 100 | 8.9 | 42.9 | 2.0 | 15.9 | 4 | 69.9 | 108 | |
| 20x25 | 17 | 110 | 9.6 | 50.8 | 2.0 | 15.9 | 4 | 79.4 | 118 | |
| 25x32 | 24 | 115 | 11.2 | 63.5 | 2.0 | 15.9 | 4 | 88.9 | 127 | |
| 32x40 | 32 | 127 | 12.7 | 73.0 | 2.0 | 15.9 | 4 | 98.4 | 140 | |
| 40x50 | 37 | 150 | 14.3 | 92.1 | 2.0 | 19.05 | 4 | 120.7 | 165 | |
| 50x65 | 48 | 180 | 15.9 | 104.8 | 2.0 | 19.05 | 4 | 139.7 | 178 | |
| 65x80 | 62 | 190 | 17.5 | 127.0 | 2.0 | 19.05 | 4 | 152.4 | 190 | |
| 80x100 | 75 | 230 | 22.3 | 157.2 | 2.0 | 19.05 | 8 | 190.5 | 203 | |
| 100x125 | 98 | 255 | 22.3 | 185.7 | 2.0 | 19.05 | 8 | 215.9 | 229 | |
| 125x150 | 125 | 280 | 23.9 | 215.9 | 2.0 | 22.2 | 8 | 241.3 | 254 | |
| 150x200 | 148 | 345 | 27.0 | 269.9 | 2.0 | 22.2 | 12 | 298.5 | 267 | |
| 200x250 | 198 | 405 | 28.6 | 323.8 | 2.0 | 22.2 | 12 | 362.0 | 292 | |
| 250x300 | 248 | 485 | 30.2 | 381.0 | 2.0 | 25.4 | 12 | 431.8 | 533 | |
| 300x350 | 298 | 535 | 33.4 | 412.8 | 2.0 | 28.6 | 12 | 476.3 | 610 |
HYD. TEST PRESSURE
| SHELL | SEAT |
|---|---|
| 32 Kg/cm² | 22 Kg/cm² |
